- Ergonomic control element can be operated with either hand
- Optimised hydraulics for reduced effort
- Durable thanks to robust materials and solid construction
- Maintenance-free design with all connections lubricated for life
- Special lowering valve for precision lowering
- AM22 - the classic in the Jungheinrich pallet truck range
- Aisle width
- 1784 mm
- Capacity
- 2200 kg
- Chassis surface
- Powder-coated
- Colour chassis
- Jungheinrich yellow
- Control panel
- Two-handed
- Drive
- Manual
- Face of forks length
- 373 mm
- Fork height
- 53 mm
- Fork roller diameter
- 82 mm
- Fork length (mm)
- 1150 mm
- Fork roller equipment
- Tandem
- Fork roller material
- Nylon (black)
- Fork roller width
- 62 mm
- Fork width
- 150 mm
- Ground clearance
- 30 mm
- Handle fittings
- Steel
- Infeed rollers
- Yes
- Lift
- 122 mm
- Lift height per pump stroke
- 10 mm
- Lift range
- 83 - 205 mm
- Load centre
- 600 mm
- Lowering speed with/without load
- 0,09 / 0,02 m/s
- Model
- Jungheinrich AM 22
- Net weight
- 60 kg
- Operator type
- Manual
- Overall length
- 1520 mm
- Overall width
- 520 mm
- Pallet truck material
- Steel
- Pump strokes to lift pallet
- 7
- Pump strokes to max. lift height
- 12
- Route
- Short distance
- Steering wheel diameter
- 170 mm
- Steering wheel material
- Nylon (black)
- Steering wheel width
- 50 mm
- Tiller height
- 1234 mm
- Tiller RAL colour
- RAL 7016 anthracite grey
- Tiller surface
- Powder-coated
- Turning radius
- 1274 mm
- Load capacity 2200kg
- Nylon (black) wheels
- Width across forks 680mm
- Warranty 6 months
-
1
Add product to cart
-
2
Go to cart
-
3
Request quote (login required)
Description

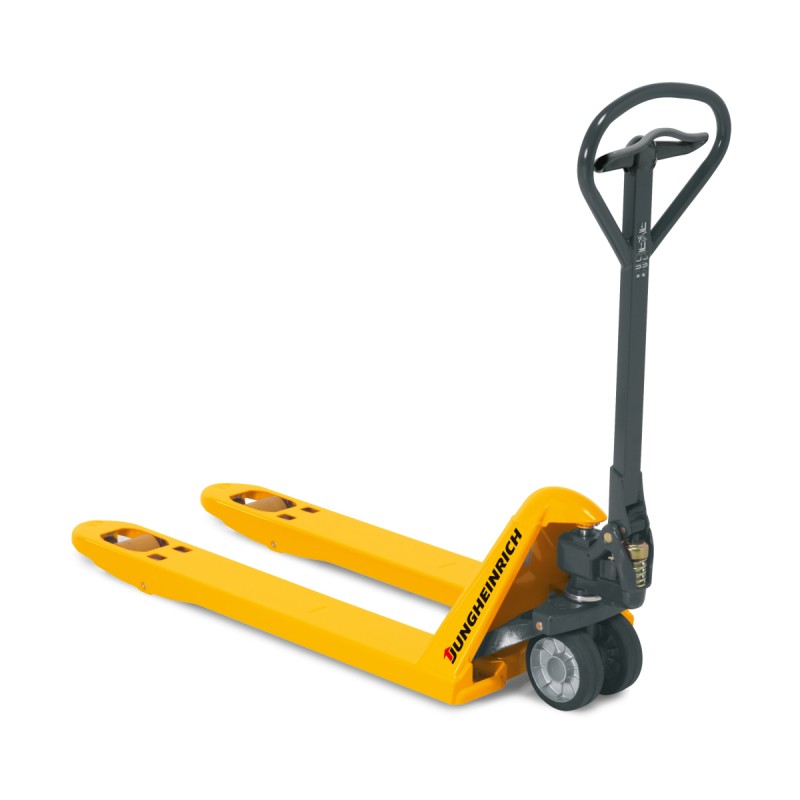

The Jungheinrich AM22 hand pallet truck with a capacity of 2200kg is a robust and reliable premium product for daily pallet handling. It impresses in continuous daily use thanks to its easy handling, maintenance-free design and outstanding durability.

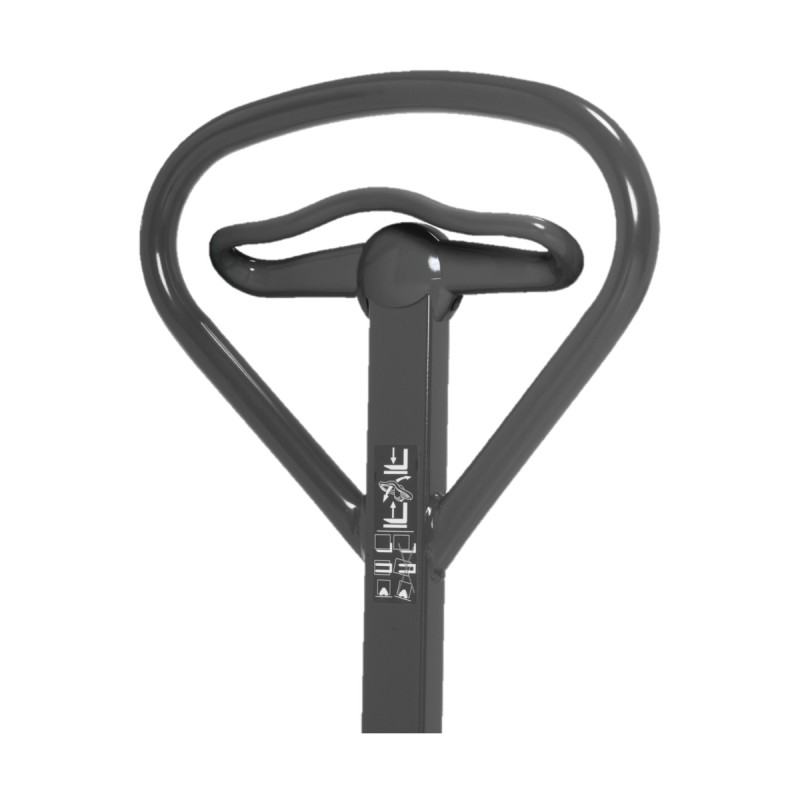

The Jungheinrich AM22 hand pallet truck with a capacity of 2200kg is a high-quality product. The patented, ergonomic Jungheinrich operating concept allows the tiller to be controlled from any position and is equally well suited to right or left-handed users. All functions can be easily operated with one hand. Thanks to the special lowering valve, sensitive loads can be set down with utmost control and precision.
The hand pallet truck does not require any servicing as the connections are lubricated for life and the pump hydraulics are maintenance-free. The outstanding stability and durability of the product is ensured by heavy-duty steel, a sophisticated design and a welded tiller mount. The covered entry rollers and rounded fork tips make insertion and retraction from the pallet particularly easy.
Durable, reliable and proven in continuous daily use - the Jungheinrich AM22 hand pallet truck with a capacity of 2200kg and standard fork length is the ideal partner for your everyday pallet transport. Order this classic product from the pallet truck range in our shop in your chosen configuration.
Product Details
Attachments
AM 22, 2200kg (680x1150mm) - Black Wheels
Note: Only available in Peninsular Malaysia
